微型P.C.B.繼電器 （6 -10A）
Miniature PCB Relay
? DC coil (standard or sensitive), 500 or 650MW
? high physical isolation between adjacent contacts
? 8mm、6 kV(1.2/50 μ s) Isolation, coil contact
? anti flux penetration: RT II
? 5mm needle pitch

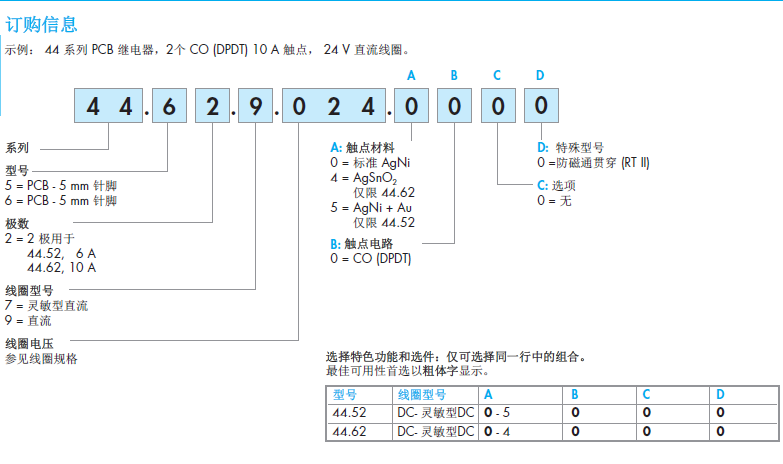

| model |
forty-four point five two | forty-four point six two | |
| Contact specifications | |||
| Contact configuration | 2 CO (DPDT) | 2 CO (DPDT) | |
| Rated current / maximum peak current a | 6/10 | 10/20 | |
| Rated voltage / maximum switching voltage V AC | 250/400 | 250/400 | |
| Rated load AC1 VA | 1,500 | 2,500 | |
| Rated load ac15 (230 V AC) VA | two hundred and fifty | five hundred | |
| Single phase motor rating (230 V AC) kw | zero point one eight five | zero point three seven | |
| Breaking capacity dc1:30/110/220 V A | 6/0.3/0.13 | 10/0.3/0.13 | |
| Minimum switching load MW (v/ma) | 300 (5/5) | 300 (5/5) | |
| Standard contact material | AgNi | AgNi | |
| Coil specification | |||
| Nominal voltage (UN) | V AC (50/60 Hz) | — | — |
| V DC | 6 - 9 - 12 - 14 - 24 - 28 - 48 - 60 - 110 - 125 | ||
| Rated power ac/dc/ sensitive DC VA (50 Hz) /w/w | —/0.65/0.5 | —/0.65/0.5 | |
| Scope of work | AC | — | — |
| Dc/ sensitive DC | (0.73…1.5)UN/(0.73…1.7)UN | (0.73…1.5)UN/(0.8…1.7)UN | |
| Holding voltage ac/dc | —/0.4 UN | —/0.4 UN | |
| Required voltage ac/dc | —/0.1 UN | —/0.1 UN | |
