PCB Relay
34 thin solid state PCB Relay
  • 34 thin solid state PCB Relay

34 thin solid state PCB Relay

(SSR)0.1 - 2 A

Ultra thin solid state PCB Relay

? sensitive DC input circuit

? subminiature, 5mm, package

? quiet, high-speed conversion, long electrical life


全國免費咨詢熱線:0755-84552800

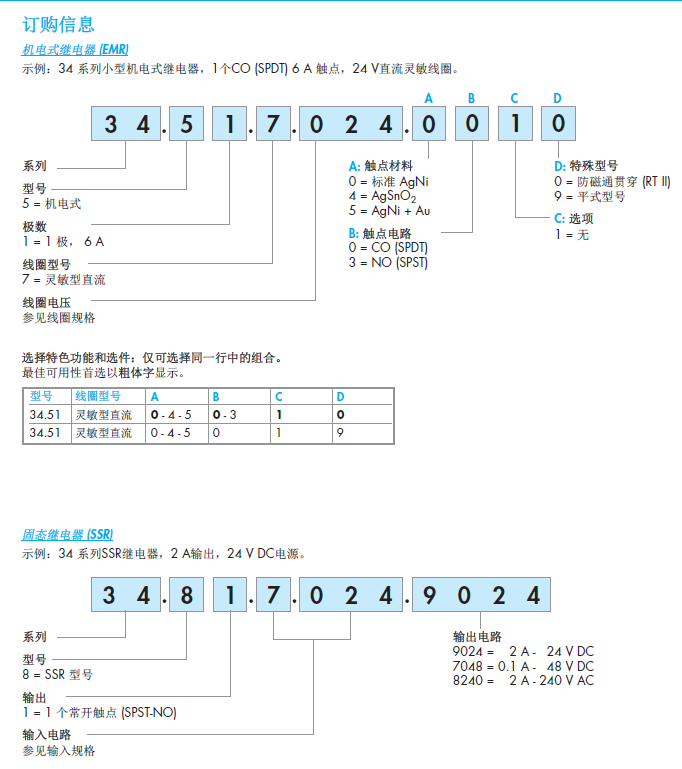

Specifications 34.81.7. xxx. nine thousand and twenty-four 34.81.7. xxx. eight thousand two hundred and forty
output circuit
Contact configuration 1 CO (SPST-NO) 1 CO  (SPST-NO)
Rated current / maximum peak current (for 10 ms) a 6/50 2/80
Rated switching voltage V 24 DC 240 AC (50/60 Hz)
Switching voltage range V (1.5…33)DC (12…275)AC
Maximum collapse voltage V thirty-three
Repetitive peak on state voltage VPK eight hundred
Rated load dc13 w thirty-six
Rated load ac15 VA three hundred
Minimum switching current Ma one thirty-five
Maximum [off state] leakage current Ma zero point zero zero one one point five
Maximum [on state] voltage drop V zero point four one point six
Input circuit
Nominal voltage (UN) V DC five twelve
twenty-four sixty five twelve twenty-four sixty
Rated power W zero point zero three five zero point zero eight five zero point one seven zero point two one zero point zero three zero point zero eight five zero point one seven zero point two one
Operating range V DC 3.5…12 8…17 16…30 35…72 3.5…10 8…17 16…30 35…72
Control current Ma seven seven seven three point five twelve seven seven three point five
Release voltage four four ten twenty one four ten twenty
