繼電器/65-1.jpg)

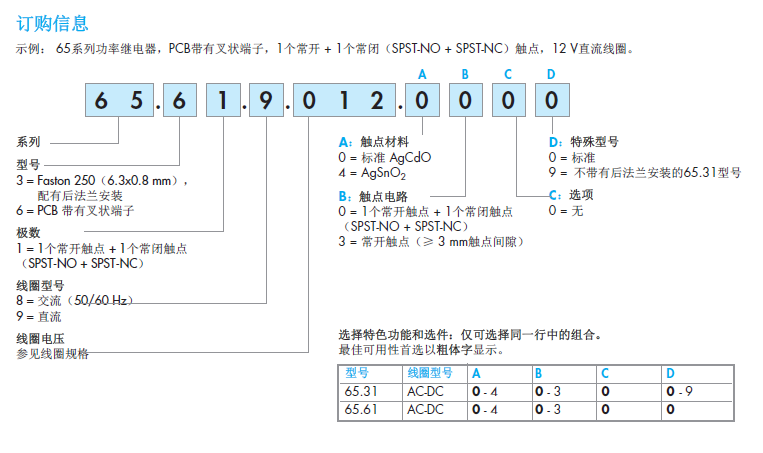

| model |
sixty-five point three one | sixty-five point six one | |
| Contact specifications | |||
| Contact configuration | 1 No 1 NC (SPST-NO SPST-NC |
1 No 1 NC (SPST-NO SPST-NC） |
|
| Rated current / maximum peak current a | 20/40* | 20/40* | |
| Rated voltage / maximum switching voltage V AC | 250/440 | 250/440 | |
| Rated load AC1 VA | five thousand | five thousand | |
| Rated load ac15 (230 V AC) VA | one thousand | one thousand | |
| Single phase motor rating (230 V AC) kw | one point one | one point one | |
| Breaking capacity dc1: 30/110/220 V A | 20/0.8/0.5 | 20/0.8/0.5 | |
| Minimum switching load MW (v/ma) | 1000（10/10） | 1000（10/10） | |
| Standard contact material | AgCdO | AgCdO | |
| Coil specification | |||
| Nominal voltage (UN)
|
V AC (50/60 Hz) | 6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240 - 400 | |
| V DC | 6 - 12 - 24 - 48 - 60 - 110 - 125 - 220 | ||
| Rated power va/w | 2.2/1.3 | 2.2/1.3 | |
| Scope of work | AC | (0.8…1.1)UN | (0.8…1.1)UN |
| DC | （0.85…1.1）UN | （0.85…1.1）UN | |
| Holding voltage ac/dc | 0.8 UN / 0.6 UN | 0.8 UN / 0.6 UN | |
| Required voltage ac/dc | 0.2 UN / 0.1 UN | 0.2 UN / 0.1 UN | |
