32 subminiature PCB Relay

超小型PCB繼電器 6A

Subminiature PCB Relay

? single pole change-over contact or single pole normally open contact

? ultra small, small package

? DC sensitive coil: 200MW

全國免費咨詢熱線:0755-84552800

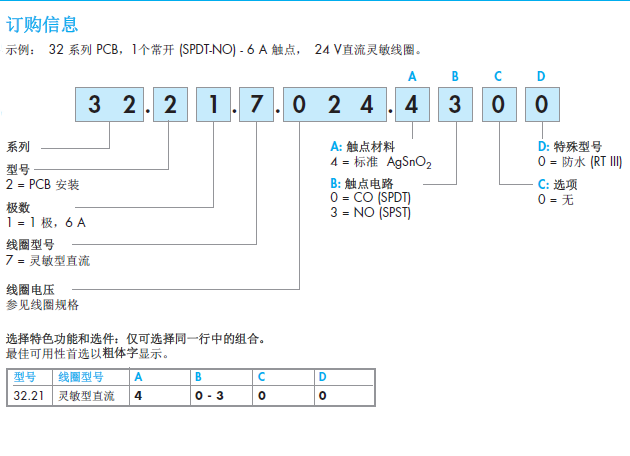

Specifications 32.21-4000 32.21-4300
Contact specifications
Contact configuration 1 CO (SPDT) 1 no (SPST-NO)
Rated current / maximum peak current a 6/15 6/15
Rated voltage / maximum switching voltage v/ac 250/400 250/400
Rated load ac1/va one thousand and five hundred one thousand and five hundred
Rated load ac15 (230 V AC) VA two hundred and fifty two hundred and fifty
Single phase motor rating (230 V AC) kw zero point one eight five zero point one eight five
Breaking capacity dc1:30/110/220 V A 3/0.35/0.2 3/0.35/0.2
Minimum switching load MW (v/ma) 500(10/5 500(10/5)
Standard contact material AgSnO? AgSnO?
Coil specification
Nominal voltage (UN)V AC(50/60 Hz)
V DC 5 - 12 - 24 - 48 5 - 12 - 24 - 48
Rated power ac/dc VA(50 Hz)/W —/0.2 —/0.2
Operating range AC
DC (0.78…1.5)UN (0.78…1.5)UN
Holding voltage ac/dc —/0.4 UN —/0.4UN
Required voltage ac/dc —/0.1 UN —/0.1 UN
